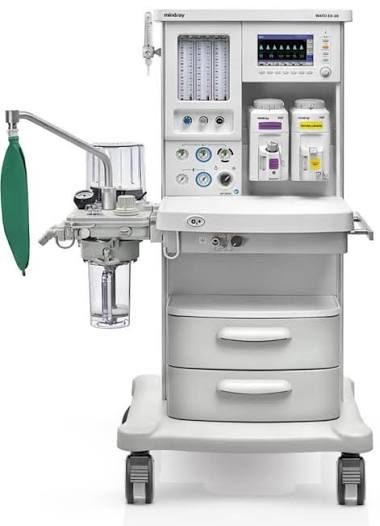

MINDRAY WATO EX-20 Anesthesia Machine With Ventilator

Specifications

Dimensions

• Height: 1375 mm
• Width: 710 mm (without breathing circumference) 880 mm (with breathing circumference)
• Depth: 620 mm
• Weight:<120 kg (including trolley base, without vaporizer and cylinder)
• Top shelf
• Weight limit: 30 kg
• Length:550 mm
• Width: 265 mm
• Working surface
• Height:820 mm
• width: 500 cm
• Depth: 310mmm
• Working surface:265 mm

Drawer-Internal dimensions

• Height: 240mm
• Width: 350mm
• Depth:275mm

Bag Arm

• Height: 1030mm
• length: 320mm
• Connection:ISO 22mm OD, 15mm ID

Screen

• Display type: active color matrix TFT
• Display size: 7.0 in diagonal
• Resolution: 800 x 400
• Brightness: Unadjustable
• Multi-display selectable: standard
• Display Parameters: all settings and alarm parameters (Breath rate, I / E ratio, tidal volume, minute volume, PEEP, Pmean Ppeak, Pplat and)2 Concentration)
• Display Graphics: Pressure-Time waves, Flow-Time, Volume-Time, Co2 waves (O2)

Ventilator Parameter Ranges

• Tide volume range: 40~1500ml (VCV mode)
• Incremental settings: 20~100ml (5 ml increments), 100~300ml (10 ml increments) 300~1500ml (25 ml increments)
• Pressure range (inspired): 5~60 cmH2O increments of 1 cmH2O
• Rate range: 4~100bpm increments of 1 bpm (VCV, P-mode) 4~60bpm increments of 1bpm (SIMV)
• Inspiratory / expiratory ratio (I: E) range: 4:1~1:8 increments of 0.5 (VCV, Trigger window: 5-90% increase (SIMV)
• Flow Trigger: 0.5~15L / min increments of 0.5L / min (SIMV
• Pressure Trigger: -20~-1cmH2O increments of 5% (SIMV)

Weight : 120Kg
