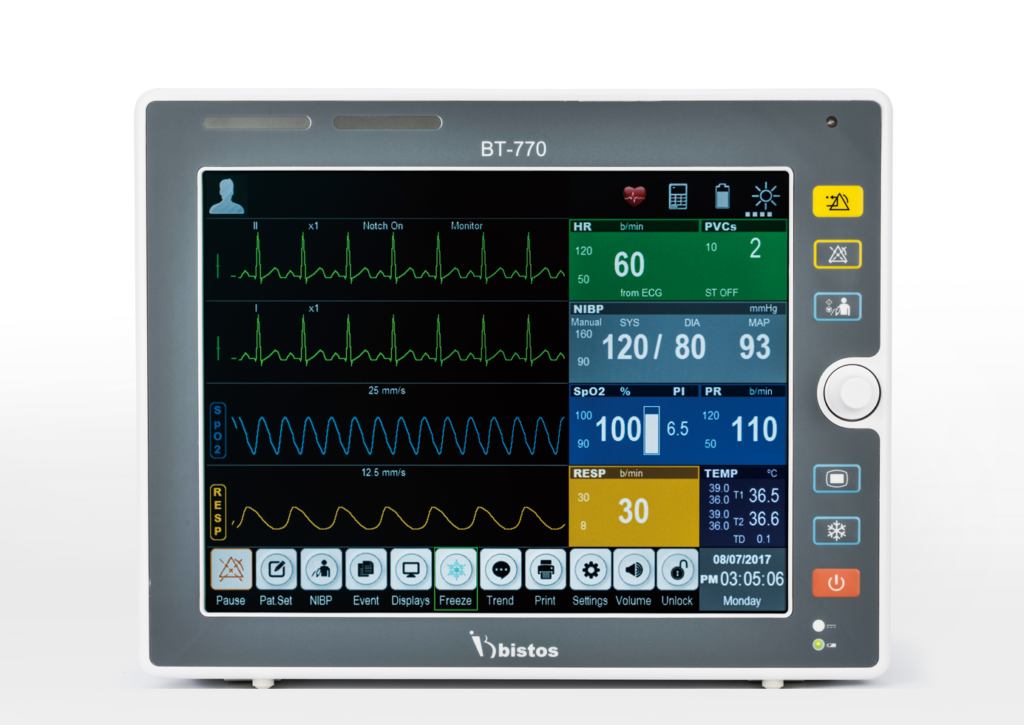

Bistos BT-770 Patient Monitor
Bistos patient monitor BT-770 is equipped with a 12.1″ touchscreen display, which allows for an easy operation and readability. The intelligent design allows for an individual placement – it can be standing in an upright position or hanging from the bedstead. The Bistos BT-770 is equipped with a powerful rechargeable battery guaranteeing a continuous operation of 5 hours to monitor ECG, SpO2, NIBP, temperature and respiration.
Bistos patient monitor BT-770 patient monitor can be bought with a probe for CO2 sidestream measurement.
Bistos patient monitor Features :
- 1“ color TFT touch screen
- ECG, Resp., SpO2, NIBP, Temp., CO2, IBP, Multi- gas, C.O., Masimo SpO2
- Precise ECG measurement with pacemaker detection
- ST segment and 16 types of arrhythmia analysis
- Double overpressure protection for NIBP
- Intelligent cuff inflation pressure adjustment
- Smart Hook/Stand design, provide multiple placement modes
- Plug & Play Modular IBP& C.O.,
- Modular Printer
- Multiple configuration options: 4- channel IBP, CO2, invasive C.O., Multi- gas
- Over 5 hours continuous working on battery
- 12- 15V wide range DC input, suitable for ambulance
- Capable to connect with central monitoring system
- HL7 export to clinical information systems (optional)
Parameters:
- ECG
- Breathing rate
- SpO2
- NIBP
- Temperature
- Optional: CO2
Technical Details
- Measurement range SpO2: 0-100%
- Measurement range pulse: 25-250 beats/minute
- Measurement method blood pressure: oscillometric
- Measurement range temperature: 0-50°C
- Li-ion battery
- Charging time: ca. 4 hours
- Connectors: RJ45, USB
- 2 year warranty
Delivery Contents:
- Patient monitor
- Optional Bistos or Masimo CO2 sidestream sensor
- SpO2 extension cord
- SpO2 sensor for adults
- 5 lead ECG cable
- Blood pressure extension cord
- Standard blood pressure cuff for adults (27-35cm)
- Temperature probe
- 25 disposable ECG electrodes
- Power supply
- Instructions for use
